  • Canada temp fence: Your Ultimate Guide to Safety and Security
Canada temp fence: Your Ultimate Guide to Safety and Security

Canada temp fence: Your Ultimate Guide to Safety and Security

  • Product No.:202391125615
  • Price:12.33$-48.90$
  • Colour:RAL
  • Hs Code:73144900
  • Finish:Hot dipped Galvanized and Powder coated
  • Mesh Aperture:2
  • Packing:Metal pallets
  • MOQ :200 kits
  • Height:4' 6' 8'
  • Width:9' 10' 9.6'
  • Guarantee:5 Years
  • Certificate:ISO
  • Online Inquiry
 Canada is renowned for its diverse landscapes, from urban cities to expansive construction sites, and bustling events. With such versatility, there's an essential need for adaptable safety and security solutions. Enter the Canada temp fence – a robust system that promises both flexibility and reliability.

What is a Canada temp Fence?

Canada temp fence, as the name suggests, is a temporary fencing system popular in Canada. It is predominantly used in construction sites, events, commercial areas, and even for residential needs. Its primary purpose is to provide a secure boundary that can be installed and removed with ease.

Features of Canada temp Fencing

  1. Quick Installation: One of its most significant advantages is the absence of a need for digging or laying foundations. This fencing system can be swiftly erected without disturbing the site's surface.

  2. Durability: Made from low carbon steel, the Canada temp fence is designed to withstand the harsh Canadian weather. Additional treatments like PVC coating, galvanizing, or powder coating add to its longevity.

  3. Versatility in Design: Available in numerous colors and specifications, it caters to various needs while remaining aesthetically appealing.

  4. Safety and Security: Its robust design ensures a safe enclosure, preventing unauthorized entries and ensuring the safety of those inside.

Specifications of Canada Temporary Fence

Temporary fence panels, commonly referred to as temp fence panels, are crucial for providing quick and efficient boundary solutions. These panels are predominantly used in construction sites, events, or any location where a permanent fence isn't required. They offer safety, manage crowds, and prevent unauthorized access. Here's a comprehensive list of their specifications:

1. Wire Diameter:

  • The thickness of the wire used in the mesh. Options include:
    • 3.0mm
    • 3.5mm
    • 3.8mm
    • 4.0mm
    • 4.5mm

2. Mesh Opening:

  • The space between wires in the mesh. Common openings are:
    • 50×200mm
    • 50×100mm
    • 50×150mm
    • 75x100mm
    • 75×150mm

3. Temp femce Dimensions (H x W):

  • The height and width of the panel. Available sizes are:
    • 6ft x 9ft
    • 6ft x 9.5ft
    • 6ft x 10ft
    • 4ftx8ft
    • 4ftx9ft
    • 8ftx9.5ft and so on

4. Outside Frame:

  • The external boundary of the panel. Sizes include:
    • 25x25mm
    • 30x30mm

5. Middle Frame:

  • The internal support structure of the panel. Sizes are:
    • 20x20mm
    • 25x25mm

6. Frame Thickness:

  • The thickness of the frame material. It can be:
    • 0.8mm
    • 1.0mm
    • 1.5mm
    • 2.0mm
    • 2.5mm
    • 3.0mm

7. Fence Feet:

  • The base that provides stability to the panel. Sizes available:
    • 563x89x7mm
    • 863x89x8mm

8. Temp fence Accessories:

  • Components to aid in connection and stability. Currently, there's:
    • A top clip used to connect two panels together.

9. Color Options temp fence

  • Visual appeal and differentiation. Color options include:
    • Blue
    • Green
    • Red
    • Dark green
    • Orange

10. Surface Finish:

  • Protection against environmental factors and for aesthetic appeal. The finish is:
    • Galvanized followed by powder coating for double protection.

In conclusion, understanding the specifications of the temp fence panels ensures one selects the right product for their needs. They offer a blend of strength, versatility, and aesthetics, making them ideal for a wide range of applications.

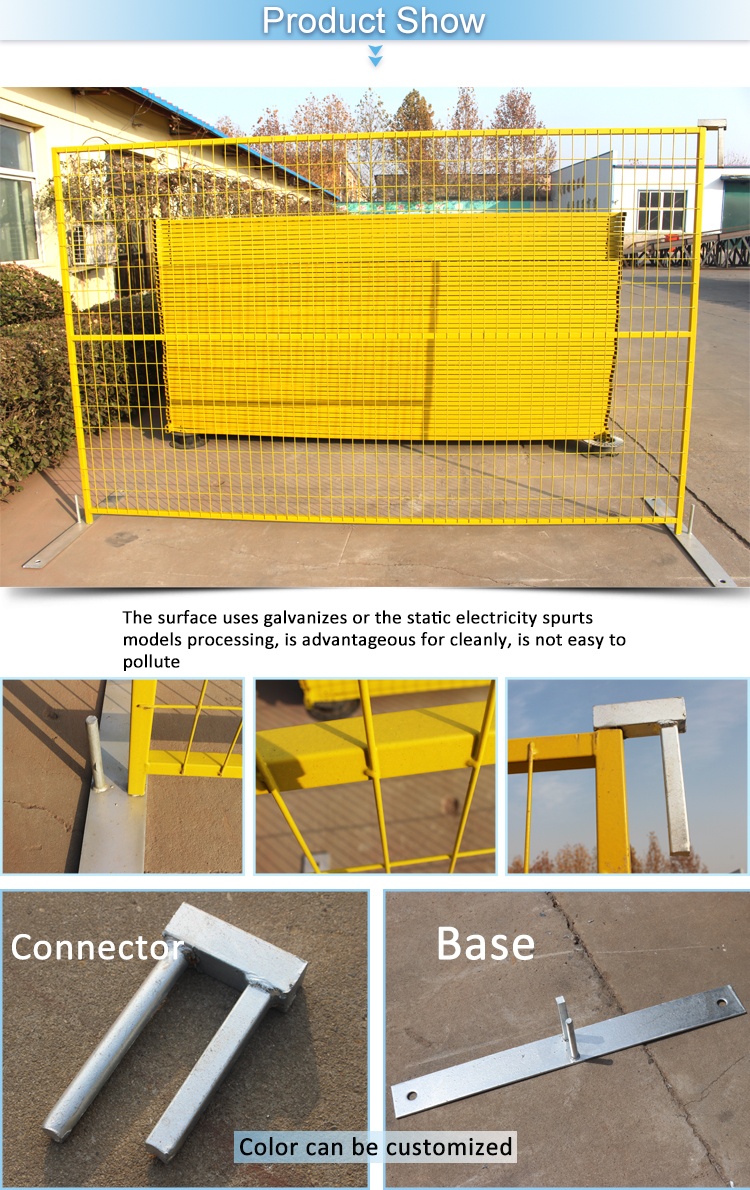

Understanding the Specifications and Uses of Top Couplers and Base Plates

In the realm of construction and event planning, the importance of having stable and reliable barriers or fences cannot be overstated. Such barriers provide security, define boundaries, and prevent unauthorized access. A significant part of this stability and reliability comes from the components that hold these barriers together: the top couplers and base plates. Here's a closer look at these crucial components.

Galvanized Canada Temporary Construction Fence Panels Hot Sale

 temp fence Top Couplers: Essential for Stability

Top couplers are fundamental in ensuring that fence panels are held securely together, granting the structure the strength it needs to withstand external forces.

Specifications of Top Couplers:

  • Material: Crafted using various materials like steel plate, solid steel rod, and steel pipe, ensuring durability and sturdiness.

  • Coupler Top Plate/Pipe: Dimensions stand at 110 × 40 × 8 mm, making it robust enough to offer reliable support.

  • Left Round Steel Rod/Pipe: Has a dimension of 30 mm in outer diameter and a height of 150 mm.

  • Right Square Steel Rod/Pipe: This comes in dimensions of 30 × 30 mm and is 150 mm in height.

  • Surface Treatment: The top coupler undergoes an electric galvanization before being powder coated. This double treatment ensures that it remains rust-free and sustains its visual appeal for an extended period.

  • Clamp Center Distance: Options include 80 mm, 90 mm, and 100 mm, giving flexibility based on requirements.

  • Applied temp fence clamps Post Outer Diameter (O.D.): Various options like 25, 28, 32, 38, 40, and 42 mm are available based on the thickness of the post being used.

  • Clamp Thickness (TH): It is 4 mm thick, ensuring a tight grip on the post.

  • Bolt: The length of the bolt can vary, with 100, 60, and 40 mm options available. The bolt's outer diameter can be 10 mm or 8 mm, based on needs.

  • Nut: The nut comes in sizes of 15.9 mm or 17 mm.

  • Surface Treatment: A hot-dipped galvanization ensures that the clamp remains rust-resistant.

  • Weight: Weighing in at 0.42 kg per set, the clamp is robust enough to provide stability without being cumbersome.

  • Accessories: Each set comprises 2 clamps, accompanied by a bolt and a nut.

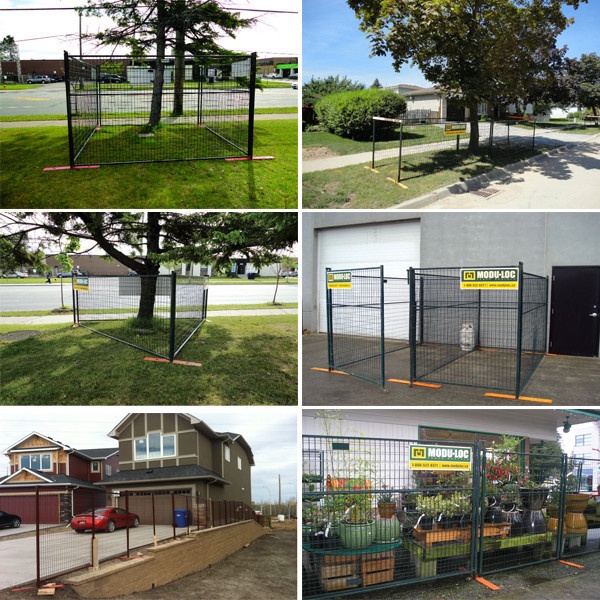

Applications and Uses temp fence

  • Construction Sites: Temporary fencing is crucial in construction areas to demarcate boundaries, ensuring the safety of workers and the public.

  • Events: Be it a music festival, cultural event, or sports gathering, Canada temp fences are essential for crowd control and security.

  • Commercial and Residential Areas: These fences come in handy during short-term renovations or modifications.

How to Install BMP Canada Temp Fence

Setting up a fence might look simple, but if it's your first time, you might face a few challenges. BMP fence panels are designed for strength and security. Follow this simplified guide to set up your BMP temp fence without any hiccups:

1. Prepare the Bases:

  • Every BMP fence base has a square peg and a round peg.
  • Position the bases about 10 feet apart.
  • Ensure all round pegs point in the direction you wish your fence to run.

2. Setting Up the Panels:

  • Team up with someone for this step.
  • Lift the panel's end and slot the square peg into its post first.
  • Pull the panel back to the previous base, positioning it on the round peg.
  • For safety, the horizontal bar on the panel should face the site's inside.

3. Setting Up Gates:

  • Want a gate? You can add it anywhere!
  • For a swinging gate, place a spacer on the round peg first.
  • Add the panel over the spacer.
  • Put the gate wheel on the panel's opposite end. With the spacer and wheel, the gate will swing smoothly.

4. Adding Caps/U-Bolts:

  • For caps: Each cap has a square and a round peg. Slide them onto the panel tops, making sure the pegs align with those of the bases.
  • For u-bolts: Secure them about 6 feet up, joining two panels. Always have bolts facing the site's inside for security.

5. Add-ons & Signs:

  • Add any signs, safety items, or screens you need on the fence.
  • Remember, if you attach heavy items, ensure your fence is stable. If in doubt, consult BMP for stability solutions.

That's it! You've set up your BMP Canada Temp Fence. For a portable guide or more details, consider checking BMP's official resources.

Conclusion temp fence

In a country as dynamic as Canada, the need for efficient, temporary fencing solutions is ever-present. The Canada temporary fence provides just that – a blend of sturdiness, ease of use, and aesthetic appeal. So, whether it's a construction project, a grand event, or a minor residential need, the Canada temp fence is your go-to solution.
