Stainless Steel Wire Rope Mesh

  • Product No.:2023915113048
  • Price:12.33-59.55$ per m2
  • Colour:natural or stainless steel
  • Hs Code:7314490000
  • MOQ :10m2
  • Guarantee:5 Years
  • Certificate:ISO
  • Online Inquiry

With evolving architectural and interior design tastes, the demand for unique decorative elements has surged. Among these, the stainless steel wire rope mesh stands out for its blend of art and functionality. Crafted from woven metal rods or cables, this mesh offers an exquisite touch to various spaces.

316 316L ss rope cable wire net/stainless steel wire rope mesh net/zoo mesh

What is Stainless Steel Wire Rope Mesh?

This decorative metal mesh is woven primarily using stainless steel, a material renowned for its strength and corrosion resistance. Some variants also incorporate chromium steel, another corrosion-resistant metal. The mesh comes in various forms such as:

  1. Metal Mesh Screens: Ideal for facades, these offer an appealing and protective layer.
  2. Copper Curtain: A luxurious touch that gleams under ambient lighting.
  3. Vertical Curtain: Perfect for partitioning spaces without blocking out light.
  4. Spiral Metal Mesh Curtain: A dynamic pattern that brings movement to static spaces.
  5. Curtain Walls: External layers that can be both functional and aesthetic.
  6. Ceiling Metal Mesh Screens: Transforming ceilings into statement pieces.
  7. Room Dividers and Drapery: Separating spaces with an artistic flair.
316 316L ss rope cable wire net/stainless steel wire rope mesh net/zoo mesh316 316L ss rope cable wire net/stainless steel wire rope mesh net/zoo mesh

Specifications

Part-1 Stainless Steel Wire Rope Mesh technica spes

Wire Cable Diameter (mm) Aperture (mm) Wire Cable Diameter (inch) Aperture (Inch) Unit weight (Kg/sq.m.) Wire Cable Structure
#32152 3.2mm 152 x 152 1/8" 6" x 6" 0.61 7×19
#32127 3.2mm 127 x 127 1/8" 5" x 5" 0.70 7×19
#32120 3.2mm 120 x 120 1/8" 4.7" x 4.7" 0.76 7×19
#32102 3.2mm 102 x 102 1/8" 4" x 4" 0.96 7×19
#3290 3.2mm 90 x 90 1/8" 3.6" x 3.6" 1.10 7×19
#3276 3.2mm 76 x 76 1/8" 3" x 3" 1.40 7×19
#3260 3.2mm 60 x 60 1/8" 2.4" x 2.4" 1.65 7×19
#3251 3.2mm 51 x 51 1/8" 2" x 2" 2.10 7×19
#24152 2.4mm 152 x 152 3/32" 6" x 6" 0.35 7×7
#24127 2.4mm 127 x 127 3/32" 5" x 5" 0.42 7×7
#24102 2.4mm 102 x 102 3/32" 4" x 4" 0.51 7×7
#2490 2.4mm 90 x 90 3/32" 3.6" x 3.6" 0.60 7×7
#2476 2.4mm 76 x 76 3/32" 3" x 3" 0.72 7×7
#2460 2.4mm 60 x 60 3/32" 2.4" x 2.4" 0.87 7×7
#2451 2.4mm 51 x 51 3/32" 2" x 2" 1.07 7×7
#2076 2mm 76 x 76 5/64" 3" x 3" 0.50 7×7
#2060 2mm 60 x 60 5/64" 2.4" x 2.4" 0.76 7×7
#2051 2mm 51 x 51 5/64" 2" x 2" 0.80 7×7
#2038 2mm 38 x 38 5/64" 1.5" x 1.5" 1.10 7×7
#16102 1.6mm 102 x 102 1/16" 4" x 4" 0.26 7×7

Part-2 Stainless Steel Wire Rope Mesh technica spes

Code Wire Cable Diameter (mm) Aperture (mm) Wire Cable Diameter (inch) Aperture (inch) Unit Weight (Kg/sq.m.) Wire Cable Structure
#1676 1.6mm 76 x 76 1/16" 3" x 3" 0.37 7x7
#1660 1.6mm 60 x 60 1/16" 2.4" x 2.4" 0.45 7x7
#1651 1.6mm 51 x 51 1/16" 2" x 2" 0.50 7x7
#1638 1.6mm 38 x 38 1/16" 1.5" x 1.5" 0.65 7x7
#1630 1.6mm 30 x 30 1/16" 1.2" x 1.2" 0.90 7x7
#1625 1.6mm 25 x 25 1/16" 1" x 1" 1.10 7x7
#12102 1.2mm 102 x 102 3/64" 4" x 4" 0.15 7x7
#1276 1.2mm 76 x 76 3/64" 3" x 3" 0.19 7x7
#1251 1.2mm 51 x 51 3/64" 2" x 2" 0.25 7x7
#1238 1.2mm 38 x 38 3/64" 1.5" x 1.5" 0.40 7x7
#1230 1.2mm 30 x 30 3/64" 1.2" x 1.2" 0.45 7x7
#1225 1.2mm 25 x 25 3/64" 1" x 1" 0.55 7x7
#1220 1.2mm 20 x 20 3/64" 0.8" x 0.8" 0.73 7x7

316 316L ss rope cable wire net/stainless steel wire rope mesh net/zoo mesh

Advantages of Using Stainless Steel Wire Rope Mesh:

  1. Artistic Brilliance: Its innate flexibility and sheen lead to varied and captivating art forms, showcasing changing colors and offering beautiful panoramic views.
  2. Versatile Application: Suitable for both indoor and outdoor uses.
  3. Durability: Boasts impressive resistance to wear, corrosion, and external factors.

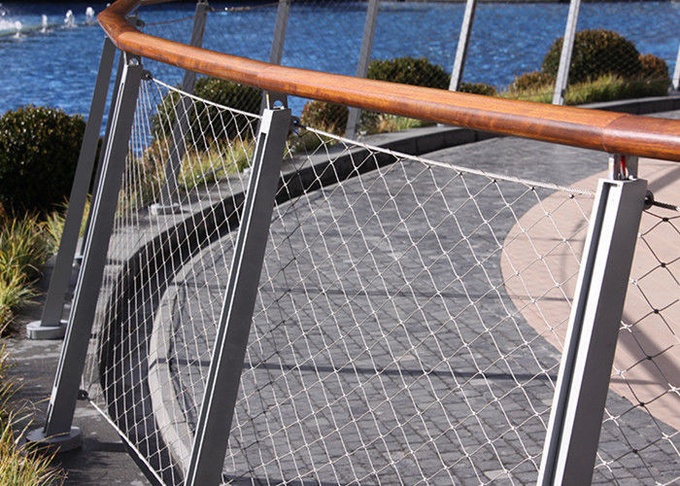

  4. Aesthetic Safety: While it’s often used as wall curtains in upscale buildings, a picture showcases its use as a decorative element for staircase handrails, blending beauty with safety.
316 316L ss rope cable wire net/stainless steel wire rope mesh net/zoo mesh316 316L ss rope cable wire net/stainless steel wire rope mesh net/zoo mesh316 316L ss rope cable wire net/stainless steel wire rope mesh net/zoo mesh316 316L ss rope cable wire net/stainless steel wire rope mesh net/zoo mesh


Decorative Architectual Facade Cladding Cable Rod Woven Mesh 25Decorative Architectual Facade Cladding Cable Rod Woven Mesh 26Decorative Architectual Facade Cladding Cable Rod Woven Mesh 27

Product Specifications:

  • Name: Flexible 3mm handwoven stainless steel wire rope mesh net, often referred to as zoo mesh.
  • Common Materials:
    • Rope: Predominantly made from Stainless Steel grades 304 and 316.
    • Ferrules: These are connectors and can be made from nickel, stainless steel, or tinned copper.
  • Cable Strand: The mesh has strands woven in configurations like 7 X 7 for diameters 1.5mm, 2mm, and 2.5mm, and 7 x 19 for 3mm and 4mm diameters.
  • Special Specifications: Customization is available to cater to unique requirements.
  • Key Feature: Known for its flexibility, wear resistance, and superior resistance to corrosion.

In Conclusion:

The stainless steel rope mesh offers a delightful fusion of style and strength. Whether used as a curtain, a divider, or a protective layer, this mesh breathes life into spaces, making them vibrant and enchanting. Consider this material for your next design project and watch spaces transform effortlessly.
